123  |  SKU: RIC-9853/TOP

123 Electronic USB Programmable Distributor - Lancia Fulvia

£499.99
Tax included Shipping calculated at checkout.

The USB programmable 123\TUNE-4-R-V-LANCIA is designed with the help of Lancia enthusiasts.

For the Fulvia this means, that the gearwheel from the original distributor needs to be replaced. (which is an easy job as everything is prepared by us)

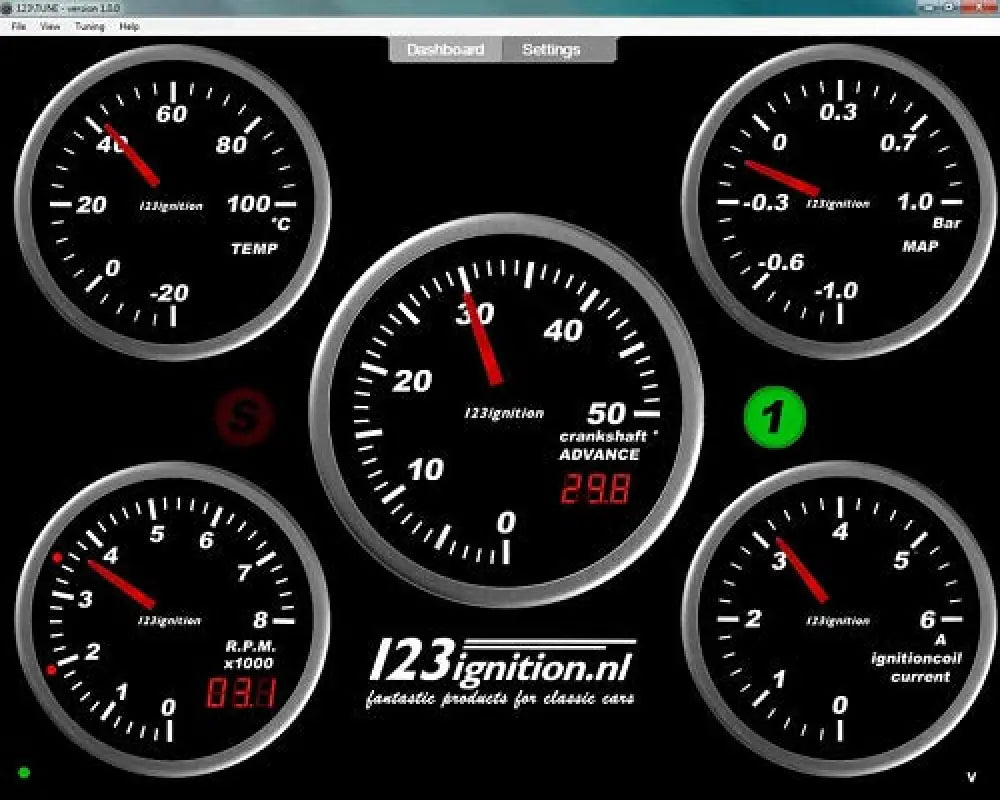

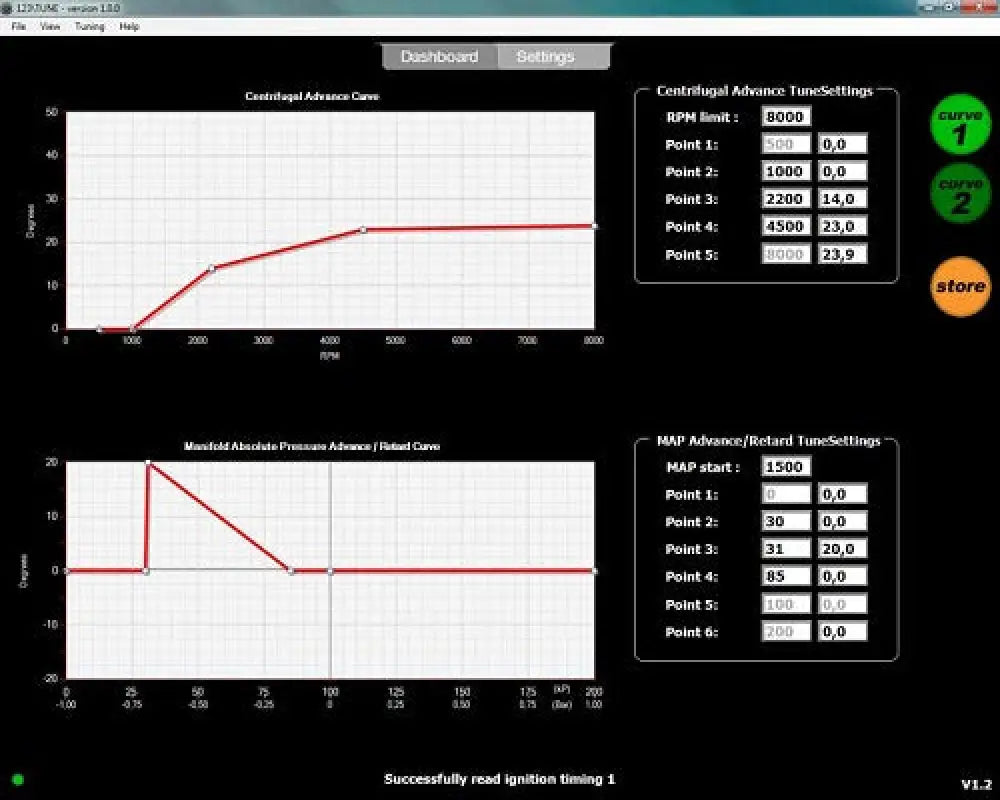

If you want to tune your engine, or you have an engine for which there is no standard distributor available….. And you are a Windows PC user, the 123\TUNE is the answer! By connecting it to a computer, you can easily adapt the 123\TUNE to fulfill even the most demanding requirements. The unit offers two sets of curves that can be selected by placing 12 Volt on a wire from the 123\TUNE. Handy, if you’re driving on two different fuels, like regular fuel with LPG or with Ethanol

Before ordering the TUNE+ please note

We strongly advise you to check the dimensions of the 123/TUNE+ with those of your original distributor AND to carefully read the installation manual before you order! In the installation manual you'll find more information and a few examples with a step by step explanation on how to install and program the 123/TUNE+.

Coil and sparkplugs

Although used coils all look alike, they should be viewed with suspicion since one cannot tell from the outside whether and how often they were exposed to overheating in the past. Installing the 123ignition system will ensure that the coil will never overheat again in the future. Of course you can also order this here. Below you will find a picture from the coil we recommend at ‘Accessories’ and you can easily add it to your cart.

Perhaps you'll also need new spark plugs? At 123ignitionshop we’ve added the spark plugs most commonly used in addition with the 123ignitions we offer. See: the spark plugs list.



    Data sheet

    Cylinders

    4

    Model

    Tune

    Operating voltage

    4-15V

    Positive earth supported

    Yes

    Wires

    Black: coil '-'

     ,

    Blue: battery negative

     ,

    Red: ignition key (battery 6V / 12V)

     ,

    Yellow: curve selector

    Vacuum

    Yes

    Rotation direction

    CW & CCW

    IE (D-jetronic support)

    No

    RPM range

    500-10.000 RPM

    Brand

    Lancia

    Environmental temperature

    -30 – 100 °C

    Cap type

    Straight

    Dwell

    Constant current: fully automatic adaptive dwell

    Coil charging time-out

    After 1 second, coil current is turned off

    Spark balancing

    <0.5 degrees

    Maximum advance

    40 degrees crankshaft



    If you have any questions or queries please feel free to ask

    Lancia Fulvia 1.3 all models
